TP-LINK T1700X-16TS [ジェットストリーム 12ポート 10ギガビット スマートスイッチ]

Affordable 10-Gigabit Switching Solution for Growing SMBs

 T1700 Series 10G Smart Switches

In a world of expanding enterprises and growing virtualization, cloud-based services and applications, like VoIP, HD streaming video, and IP surveillance, SMB networks need to evolve beyond simple reliability to provide increased scalability, higher bandwidth, and enhanced performance. TP-LINK’s new T1700 Series 10G Smart Switches represent an ideal solution that meets these requirements. The series includes the T1700X-16TS Full 10-Gigabit Smart Switch and the T1700G-28TQ Gigabit Stackable Smart Switch with 10G Uplink, which both provide high levels of performance, scalability, and cost-effectiveness that SMBs require from their 10G networking solutions.

FULL 10-GIGABIT
SMART SWITCH

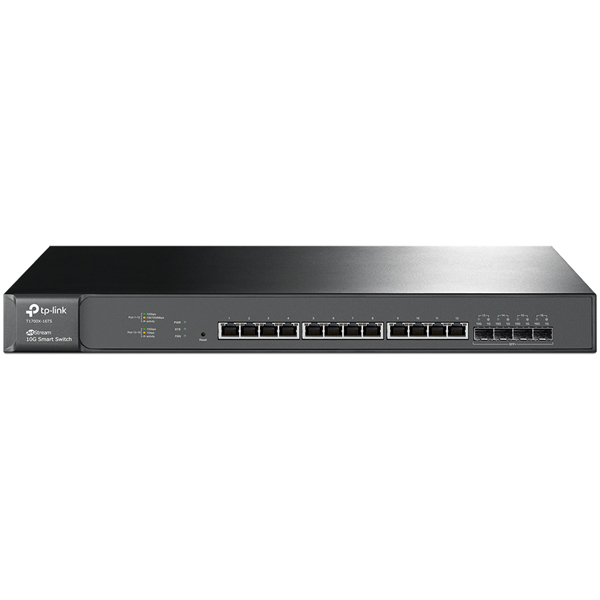

 12-Port 10GBase-T Smart Switch
with 4 10G SFP+ Slots

GIGABIT STACKABLE
WITH 10G UPLINK

 24-Port Gigabit Stackable Smart Switch
with 4 10GE SFP+ Slots

• 6 Units

  True Physical Stacking Technology of up to six units supports network simplification

• 144 GE Ports

  Up to 144 Gigabit Ethernet ports per stack

• 24 10G SFP+

  Up to 24 10G SFP+ slots per stack

• 768 Gbps

  Up to 768Gbps of switching capacity for aggregated networks

• 1 Management IP

  With all units identified by a single IP address, configuring and monitoring the stack is easy

Fanless Design for Silent Operation

The T1700G-28TQ utilizes a fanless design, which reduces the amount of ambient noise in your office. Removing the fan also reduces power consumption and helps you build a more cost-effective network.

Software Features

• L2+ Static Routing

  Simple network segmentation, with internal routing through the switch, allows devices in different VLANs/subnets to communicate with each other and makes the flow of network traffic more efficient.

• Abundant L2 Features

  T1700 Series devices are equipped with a full lineup of L2 features that meet your current and future needs for unified networking and mobility.

  802.1Q/MAC/Protocol/Private VLAN1

  Link Aggregation Group (LAG)

  IGMP & MLD Snooping

  Multicast VLAN

• Robust Security Strategies

  Support for numerous security strategies allow you to create a secure, unified network by preventing unauthorized access, external attacks, and malware infiltration.

  Access Control List (ACL)

  DHCP Snooping

  802.1x Authentication

  IP-MAC-Port Binding

• Comprehensive QoS Features

  Advanced controls provide optimized network performance and efficient delivery of time-sensitive traffic.

  Port-Based or 802.1p-Based Prioritization

  Layer 3-Based (DSCP) Prioritization

  Rate Limit

  Voice VLAN

• IPv6 Support

  The T1700 Series offers comprehensive IPv6 features, including IPv6 management, Static Routing, ACL, and QoS2, which ease the transition to an IPv6-based network and protect the value of your investment.

• Dual Image

  Dual image firmware reduces downtime when the firmware is being updated. The backup image will also be activated in the event that any error occurs on the active image.
