Connector Type |
Thunderbolt(TM) 3 |
Host Ports |
2x Thunderbolt(TM) 3 Ports |
Daisy Chain |
Supports Daisy Chain connections of up to six Thunderbolt(TM) devices. |
|
(Note > the Daisy Chain will end when connecting a USB device or Display via USB-C) |
TB3 Technology |
Daisy Chain up to 6 devices |
|
Bi-directional, dual-protocol (PCI Express and DisplayPort) |
|
8 lanes of Display Port 1.2 - supports dual 4K displays or one 5K display |
|
Power delivery 15W to bus-powered devices |
|
Backward compatible with Thunderbolt(TM) 2 devices |
|
USB-C ports compatible with existing USB devices and cables, support up to USB 3.1 10Gb/s speed |
RAID Type |
Hardware RAID |
RAID Support |
0, 1, 5, 6, 10, 50 and JBOD |
Capacity |
Unlimited |
Number of Devices |
Up to 8 |
Device Type |
SAS, SATA |
Drive Form Factor |
3.5" & 2.5" |
Power Supply |
250W Low Noise PSU |
|
AC INPUT 100-240 V 50/60Hz |

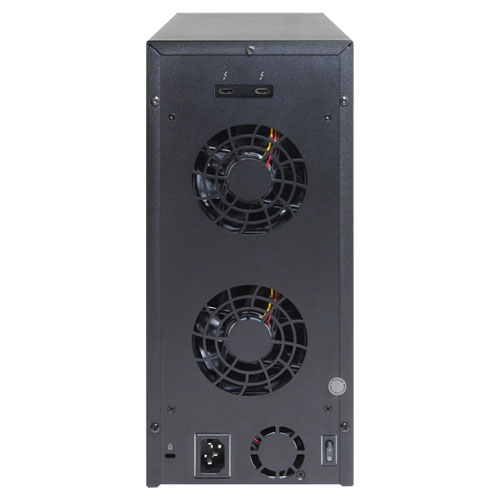

Cooling |
Dual 80 x 80 x25mm Cooling Fans, Heat-Dissipating Aluminum Enclosure |
Alarm Buzzer |
Buzzer beeping when failed drive or array occurs |
Materal |
Matte Plastic & Coated Alumimum |
Dimension |
13.00" (H) x 5.67" (W) x 10.12" (D) |
Weight |
12.9 lbs. |
Warranty |
3 Years |
Performance |
HDD 8x disks (Read/Write) |
|
RAID 0 → 2,000 / 1,900 MB/s |
|
RAID 5 → 1,700 / 1,000 MB/s |
|
SSD 8x disks (Read/Write) |
|
RAID 0 → 2,700 / 2,400 MB/s |
|
RAID 5 → 2,700 / 1,000 MB/s |
