商品スペック
Size | 140 x 140 x 25 mm |
---|---|
Screw hole pattern | 125 x 125 mm |

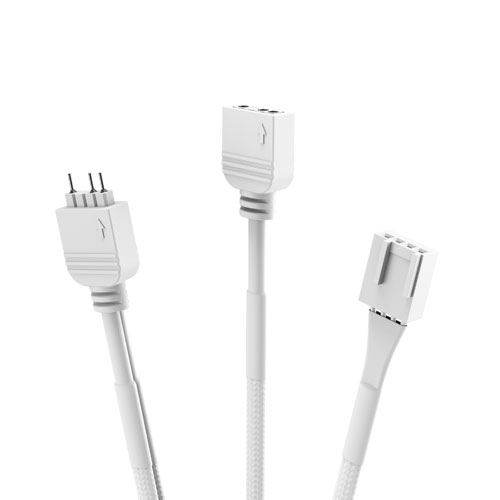

Connector | 4-pin |
LED type | 5V addressable RGB |
Bearing | LLS |
Number of blades | 7 |
Rotational speed | 500 - 1,700 RPM |
Noise level | 34.1 dB(A) |
Airflow (CFM) | 103.85 CFM |
Airflow (m3/h) | 176.44 m3/h |
Static pressure | 2.38 mmH2O |
Fan input power | 2.16 W |
Fan max input current | 0.18 A |
Fan input voltage | 12 V |
Fan starting voltage | 7 V |
LED input power | 1.50 W |
LED max input current | 0.30 A |
LED input voltage | 5 V |
Low (0-20%) PWM speed | 500 RPM |
Low PWM noise level | 15.1 dB(A) |
Low PWM airflow | 31.67 CFM |
Low PWM static pressure | 0.44 mmH2O |
MTBF | 100,000 hours |
Fan weight | 200 g |
Cable length | 500 mm |
