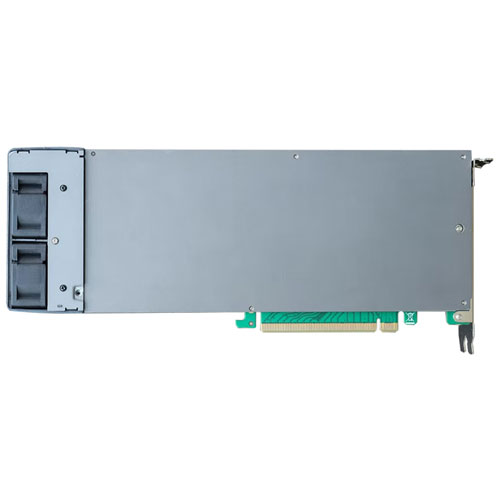

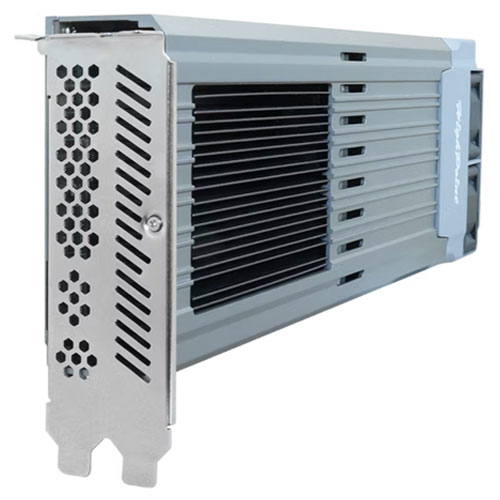

HighPoint R1749E [Rocket 1749E PCIe Gen4 x16 to DC-Class 8x E1.S NVMe AIC]

¥324,050（税込）

送料無料！

メーカーに在庫がある場合は2～10日前後での出荷となります。

数量：

型　番： R1749E

商品スペック

Bus Interface	PCIe 4.0 x16
Number of Channel / Port	8 x E1.S Ports (Dedicated PCIe 4.0 x4 per port)
Connector Type	E1.S
Number of devices	8
SSD Form Factor	[9.5mm] Up to 8 SSDs; [15mm] Up to 4 SSDs
Data Transfer Rate	32GB/s
External Power Connector	Yes; Uses PCIe Standard 2x3 Power Connector
Toolless SSD Installation	Yes
Form Factor	Full-Height, Full-Length, Dual-Width
PCIe Bracket	Dual-Width Full-Height Ventilated Bracket
Cooling Solution	Dual Low-Decibel Cooling Fans & Full-Length Aluminum Heatsink
Card Dimensions	284mm (L) x 110mm (H)
Card Weight	2.60 lbs.
OS	Native OS Support
Software Secure Boot	Yes
Working Temp.	+5°C ～ + 55°C
Storage Temp.	-20°C ～ +80°C
Operating Voltage	[PCIe] 12V(+/- 8%), 3.3V (+/- 8%)
Power	[Typical] 17.28W
MTBF	920,585 Hours
Kit Contents	Rocket 1749E Switch AIC
	QIG
