マザーボード Intel C621/LGA3647/DDR4(8 DIMM)/4xGLAN/ASPEED AST2500/ATX

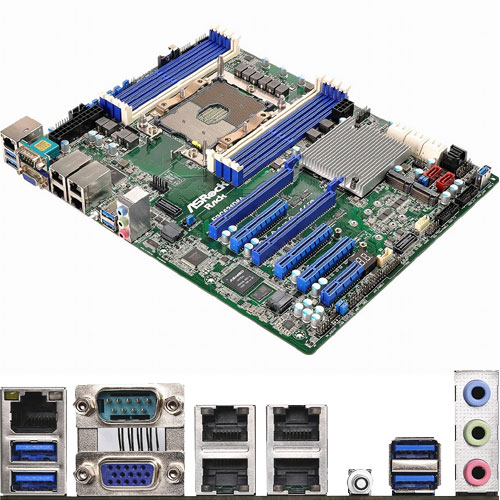

ASRock Rack EPC621D8A [マザーボード Intel C621/LGA3647/DDR4(8 DIMM)/4xGLAN/ASPEED AST2500/ATX]

¥87,890（税込）

送料無料！

お取寄せ※納期目安について

メーカーに在庫がある場合は2～10日前後での出荷となります。

数量：

型　番： EPC621D8A

詳　細：メーカーページへ

商品紹介

マザーボード Intel C621/LGA3647/DDR4(8 DIMM)/4xGLAN/ASPEED AST2500/ATX

商品スペック

【MB Physical Status】
Form Factor	ATX
Dimensions	12''x9.6''
【Processor System】
CPU	Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors
Socket	Single Socket P, LGA3647
Chipset	Intel C621
【System Memory】
Capacity	8 x 288-pin DDR4 DIMM slots
Type	Six Channel memory technology
	Support DDR4 2933/2666/2400/2133 RDIMM/LR DIMM, Intel Optane DC Persistent Memory in memory mode (Cascade Lake only)
Voltage	1.2V
【Expansion Slot】
PCIe 3.0 x 16	2 slots (＜slot4＞ share with slot3, X16/x8, ＜Slot6＞ share with slot5, X16/x8)
PCIe 3.0 x 8	3 slots (＜slot2＞ x8, ＜slot3＞ share with slot3, X0/x8, ＜Slot5＞ share with slot6, X0/x8)
PCIe 3.0 x 4	1 slot
【Storage】
SATA Controller	＜Intel C621＞ 13 x SATA3 (including 1 SATA DOM ports and 2 M.2 ports)
【Ethernet】
Interface	1000 Mbps (1GbE)
LAN Controller	4 x RJ45 by Marvell 88E1543 for 4 ports GbE
【Management】
BMC Controller	ASPEED AST2500
IPMI Dedicated GLAN	1 x Realtek RTL8211E for dedicated management GLAN
Features	Watch Dog
	NMI
【Graphics】
Controller	ASPEED AST2500
VRAM	DDR4 256MB
【Audio】
Audio Codec	Realtek ALC1150
【Rear Panel I/O】
VGA Port	1 x D-Sub
USB 3.1 Gen1 Port	4
Lan Port	4+1 RJ45 Gigabit Ethernet LAN port
	LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port	1 x COM port
Audio	3 hole
【Internal Connector】
SATA DOM	1
M.2	2 (up to 2280, SATA and PCIe x1)
Auxiliary Panel Header	1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header	1
IPMB Header	1
Buzzer	1
Fan Header	1 x CPU Fan, 4 x system Fan (3 front, 1 rear)
ATX Power	1 (24-pin) + 1 (8-pin)
USB 3.1 (Gen1) Header	2 (support 4 ports USB 3.0)
Type A USB 3.1 (Gen1) Port	1
【System BIOS】
BIOS Type	256MB AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP)
	ACPI 2.0 Compliance Wake Up Events
	SMBIOS 2.8 Support
	ASRock Rack Instant Flash
【Hardware Monitor】
Temperature	CPU Temperature Sensing
	System Temperature Sensing
Fan	CPU/Rear/Front Fan Tachometer
	CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
	CPU/Rear/Front Fan Multi-Speed Control
Voltage	＜Voltage Monitoring＞ +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
【Support OS】
OS	＜Microsoft Windows＞
	Windows 10 (64 bit)
	Server 2012 R2 (64 bit)
	Server 2016 (64 bit)
	＜Linux＞
	CentOS 6.8 (64 bit) / 7. 2 (64 bit)
	SUSE Enterprise Linux Server 11 SP4 (64 bit) /12 SP1 (64 bit)
	FreeBSD 11 (64 bit)
	Fedora Core 24 (64 bit)
	Ubuntu 16.04/15.10 (64 bit)
	RedHat Enterprise Linux Server 6.8 (64 bit) / 7.2 (64 bit)
	＜Virtual＞
	VMWare ESXi 6.0
	Environment
Temperature	＜Operation temperature＞ 10°C ～ 35°C / ＜Non operation temperature＞ -40°C ～ 70°C
