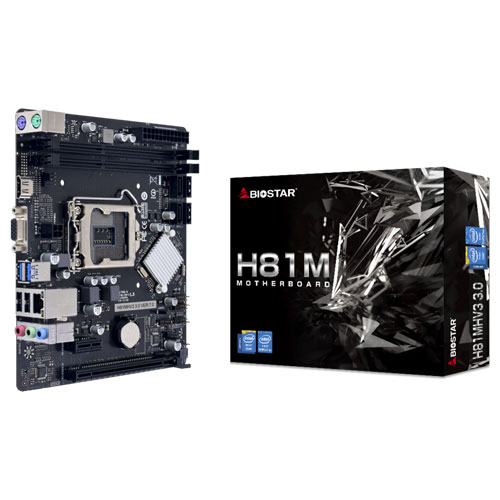

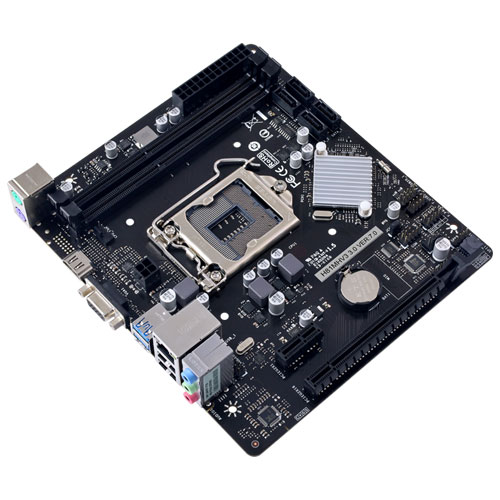

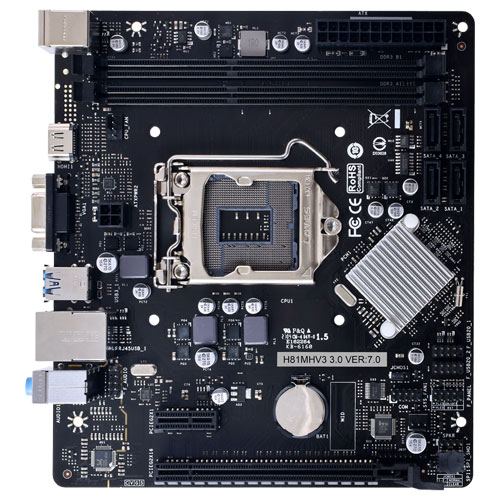

BIOSTAR H81MHV3 3.0 [マザーボード H81/LGA1150/DDR3/Micro ATX]

¥9,664（税込）

こちらの商品は販売終了致しました。

型　番： H81MHV3 3.0

詳　細： メーカーページへ

商品スペック

チップセット Intel H81
CPU SUPPORT Support Intel Core i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1150 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR3 1066/ 1333/ 1600
2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX11.1
STORAGE Supports AHCI
2 x SATA II (3Gb/s)
2 x SATA III (6Gb/s)
LAN Realtek GbE LAN
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC887
5.1 Channels, High Definition Audio
USB 2 x USB 3.0 ports (2 on rear I/Os)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCIe 2.0 x1
1 x PCIe 2.0 x16 Slot (x16 mode)

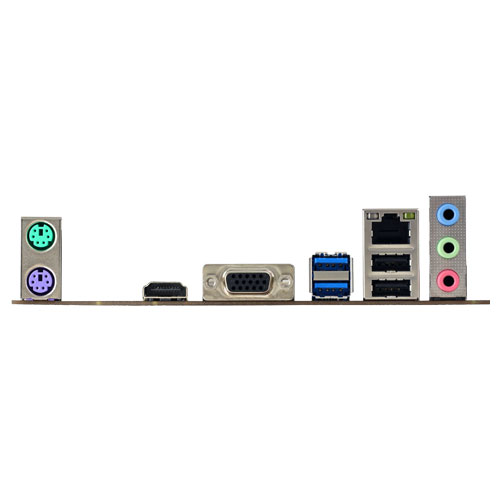

REAR I/O 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA Port
1 x HDMI Port
2 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 2 x SATA II (3Gb/s)
2 x SATA III (6Gb/s)
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension; 17cm x 19cm ( W x L )
OS SUPPORT Supports Windows 7 / 8 / 8.1 /10
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports Solid capacitor
BIO-FLASHER
