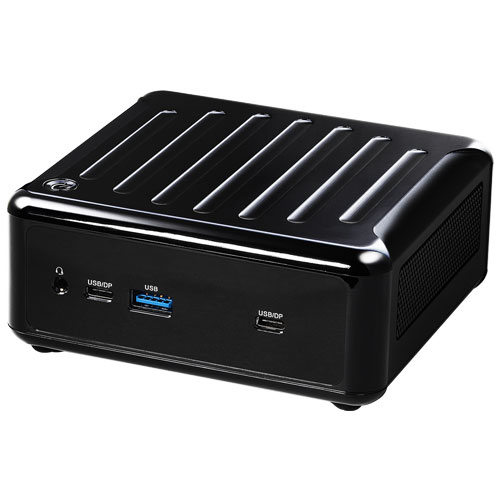

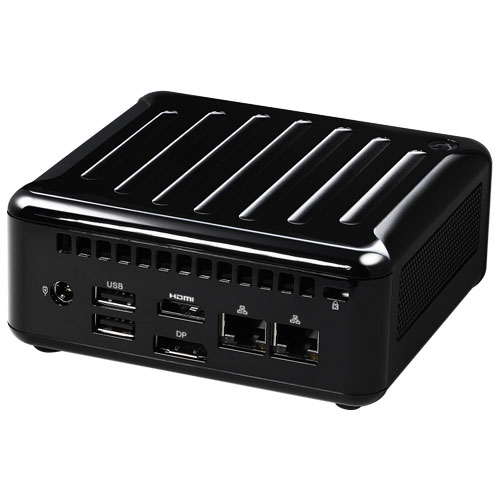

ASRock 4x4 BOX-7535U/D5 [ベアボーンPC (AMD Ryzen 5 7535U (6C12T)/DDR5/2.5GbE + GbE/Wi-Fi 6E)]

¥77,980（税込）

こちらの商品は販売終了致しました。

型　番： 4x4 BOX-7535U/D5

発売日： 2023年12月08日

詳　細：メーカーページへ

商品スペック

CPU	AMD Ryzen 7000U-Series
	4X4 BOX-7535U/D5 (AMD Ryzen 5 7535U, 6Cores, Max Speed up to 4.55GHz)
Chipset	SoC
BIOS	AMI SPI 256 Mbit
Form Factor Dimensions	117.5 x 110.0 x 47.85mm
Memory Technology	Dual Channel DDR5 4800 MHz
MemoryCapacity	64 GB (32 GB per DIMM)
MemorySocket	2 x 262-pin SO-DIMM
Graphics Controller	AMD Radeon Graphics
HDMI	HDMI 2.1
	Max resolution up to 7680 x 4320@60Hz
DisplayPort	DisplayPort 1.4a, DP++
	Max resolution up to 4096x2160@60Hz
MultiDisplay	Max 4 display (Included 2 outputs from Type-C)
Expansion Slot M.2/WLAN	1 x Wi-Fi 6E 802.11ax + BT 5.2
Audio Interface	Realtek ALC233/ALC256, High Definition Audio.
Ethernet Controller/ Speed	[LAN1] Realtek RTL8125BG with 10/100/1000/2500 Mbps
	[LAN2] Realtek RTL8111EPV with 10/100/1000 Mbps,support DASH function
Ethernet Connector	2 x RJ-45

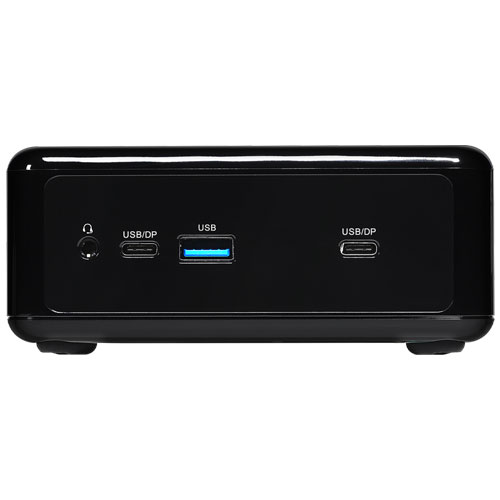

Front I/O - USB	1 x USB 3.2 Gen2 (Type-A)
	2 x USB4 (Supports DP1.4a display output)
Front I/O - Audio	1 (headphone & microphone jack)

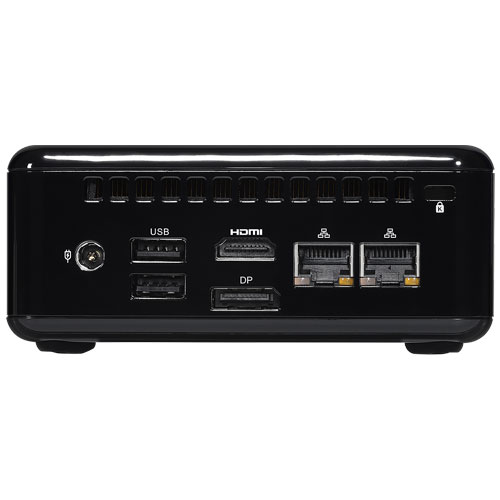

Rear I/O - HDMI	1 x HDMI 2.1
Rear I/O - DisplayPort	1 x DP 1.4a
Rear I/O - Ethernet	1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
Rear I/O - USB	2 x USB 2.0
Rear I/O - DC Jack	1
Storage - M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
	*M.2 Key M 2280(Supported by bracket)
Storage - SATA	1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer - Output	From Super I/O to drag RESETCON#
Watchdog Timer - Interval	256 Segments 0,1,2....255sec
Input PWR	12V～19V DC-In Jack
Power On	AT/ATX supported
	[-AT] Direct PWR on as power input ready
	[-ATX] Press button to PWR on after power input ready
Operating Temp	0° C ～ 40° C
Storage Temp	-40° C ～ 85° C
Operating Humidity	5% ～ 90%
Storage Humidity	5% ～ 90%
Mounting	VESA mount
Dimensions (L x W x H)	117.5 x 110.0 x 47.85mm(4.63" x 4.33" x 1.88")
Weight	Net Weight 1kg
OS Support	Windows 10/11
Certifications	CE, FCC
Packing List	19V/90W Power Adapter (R5 7535U)
	1 x VESA mount bracket
TPM	TPM 2.0 onboard IC
