ASRock NUC BOX-1360P/D4 [ベアボーンPC (Intel Core i7-1360P (4P+8E)/DDR4/Thunderbolt 4/2.5GbE×2/Wi-Fi 6E)]

¥120,477（税込）

送料無料！

お取寄せ※納期目安について

メーカーに在庫がある場合は2～10日前後での出荷となります。

数量：

オプションを追加で申し込む

３年間あんしん保証パックの追加[?］

型　番： NUC BOX-1360P/D4

発売日： 2023年12月08日

詳　細：メーカーページへ

商品スペック

CPU	Intel 13th Gen (Raptor Lake-P) Core Processors
	NUC BOX-1360P/D4 (i7-1360P, 4P+8E)
Chipset	MCP
BIOS	AMI SPI 256 Mbit
Memory Technology	Dual Channel DDR4 3200 MHz
MemoryCapacity	64GB (32 GB per DIMM)
MemorySocket	2 x 260-pin SO-DIMM
Graphics Controller	Intel Iris Xe Graphics
HDMI	HDMI 2.0b
	Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.4a, DP++
	Max resolution up to 4096x2160@60Hz
MultiDisplay	Quad-Display (Included 2 outputs from Type-C)
Expansion Slot M.2/WLAN	1 x Wi-Fi 6E 802.11ax + BT 5.3
Audio Interface	Realtek ALC233/ALC256, High Definition Audio.
Ethernet Controller/ Speed	[LAN1] Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
	[LAN2] Intel I226LM/I226V with 10/100/1000/2500 Mbps
Ethernet Connector	2 x RJ-45

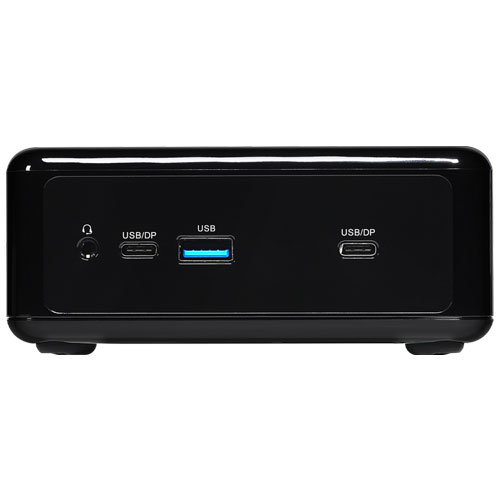

Front I/O - USB	1 x USB 3.2 Gen2 (Type A)
	1 x USB4/Thunderbolt 4 (Supports DP1.4a display output)
	1 x USB3.2 gen2 (Type-C, Supports DP1.4a display output)
	*For Thunderbolt support, please refer to support list.
Front I/O - Audio	1 (headphone & microphone jack)

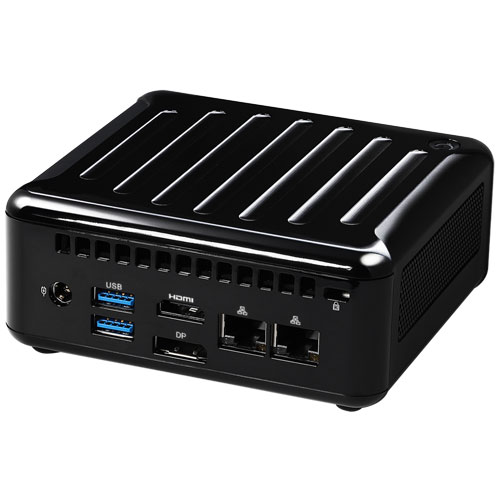

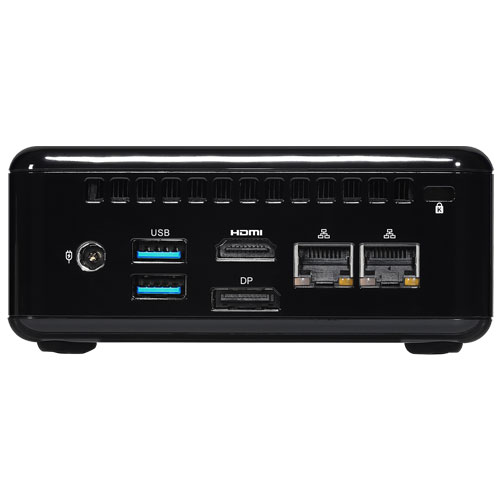

Rear I/O - HDMI	1 x HDMI 2.0b
Rear I/O - DisplayPort	1 x DP 1.4a
Rear I/O - Ethernet	2 x 2.5 Gigabit LAN
Rear I/O - USB	2 x USB 3.2 Gen2 (Type-A)
Rear I/O - DC Jack	1
Storage - M.2	1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
	*M.2 Key M 2280(Supported by bracket)
Storage - SATA	1 x SATA3.0 (6.0 Gb/s)
Watchdog Timer - Output	From Super I/O to drag RESETCON#
Watchdog Timer - Interval	256 Segments, 0, 1, 2, ...255sec
Input PWR	12V～19V DC-In Jack
Power On	AT/ATX Supported
	[-AT] Directly PWR on as power input ready
	[-ATX] Press button to PWR on after power input ready
Operating Temp	0° C ～ 40° C
Storage Temp	-40° C ～ 85° C
Operating Humidity	5% ～ 90%
Storage Humidity	5% ～ 90%
Mounting	VESA mount
Dimensions (L x W x H)	117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88")
Weight	Net Weight 1.0Kg
OS Support	Windows 10/11
TPM	TPM 2.0 onboard IC
Certifications	CE, FCC
Packing List	1 x 19V/120W Power Adapter
	1 x VESA mount bracket
