商品スペック
| ATX Version | ATX 12V Ver. 3.1 |
|---|---|
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 9-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 180 x 150 x 86 mm |
| Efficiency | ≧ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≧ 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection |
| Regulatory | cUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.) |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| 12V-2x6 Connectors | 1 |
| USB 10P Connector | 1 |
| Series | X Series |
| 80 Plus Efficiency | Platinum |
| Category | Above 750W |
| Form Factor | ATX |
| Watts | 850W |
| Input Voltage Range | Full Range |
おすすめ商品
-
![Fractal Design FD-PSU-ION-SFX-650G-BK [ATX電源 80PLUS GOLD認証 Ion SFX-L 650W Gold]]()
¥16,680（税込）
Fractal Design FD-PSU-ION-SFX-650G-BK [ATX電源 80PLUS GOLD認証 Ion SFX-L 650W Gold]
-
![Thermaltake PS-TPD-1000FNFAGJ-4 [ATX電源 80PLUS GOLD認証 Toughpower GF3 1000W Gold - TT Premium Edition]]()
¥24,840（税込）
Thermaltake PS-TPD-1000FNFAGJ-4 [ATX電源 80PLUS GOLD認証 Toughpower GF3 1000W Gold - TT Premium Edition]
-
![HP 671R3AA#ABJ [HP 65W USB-C ラップトップチャージャー]]()
¥3,958（税込）
HP 671R3AA#ABJ [HP 65W USB-C ラップトップチャージャー]
-
![Fractal Design FD-P-IA2G-850 [ATX電源 80PLUS GOLD認証 ION Gold 850W]]()
¥15,832（税込）
Fractal Design FD-P-IA2G-850 [ATX電源 80PLUS GOLD認証 ION Gold 850W]
-
![ANTEC NE850G M White [ATX電源 80PLUS GOLD認証 NE GOLD M White 850W]]()
¥17,714（税込）
ANTEC NE850G M White [ATX電源 80PLUS GOLD認証 NE GOLD M White 850W]
-
![Thermaltake PS-SPD-0600NNFAWJ-1 [ATX電源 80PLUS STANDARD認証 Smart Pro 600W]]()
¥7,980（税込）
Thermaltake PS-SPD-0600NNFAWJ-1 [ATX電源 80PLUS STANDARD認証 Smart Pro 600W]
-
![ANTEC NE650G M [ATX電源 80PLUS GOLD認証 NE GOLD M 650W]]()
¥14,480（税込）
ANTEC NE650G M [ATX電源 80PLUS GOLD認証 NE GOLD M 650W]
-
![ANTEC NE750G M [ATX電源 80PLUS GOLD認証 NE GOLD M 750W]]()
¥15,120（税込）
ANTEC NE750G M [ATX電源 80PLUS GOLD認証 NE GOLD M 750W]
-
![Fractal Design FD-P-IA2G-750 [ATX電源 80PLUS GOLD認証 ION Gold 750W]]()
¥14,586（税込）
Fractal Design FD-P-IA2G-750 [ATX電源 80PLUS GOLD認証 ION Gold 750W]
-
![ANTEC X9000A505-18 [ATX電源 80PLUS TITANIUM認証 Signature Titanium 1000W]]()
¥31,800（税込）
ANTEC X9000A505-18 [ATX電源 80PLUS TITANIUM認証 Signature Titanium 1000W]
-

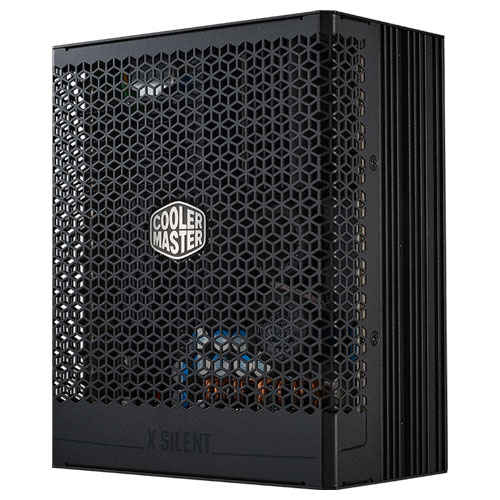

![クーラーマスター MPS-8501-AZAP-BJP [X Silent Edge Platinum 850]]()
