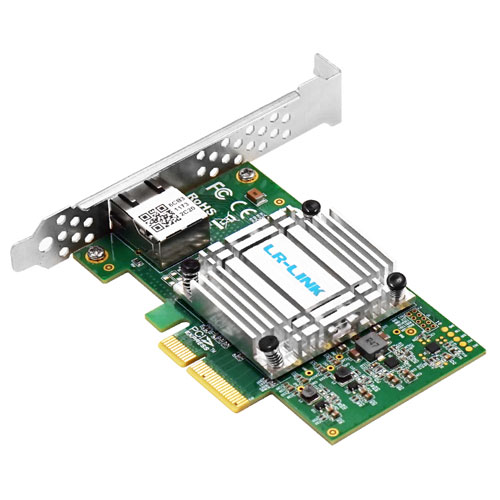

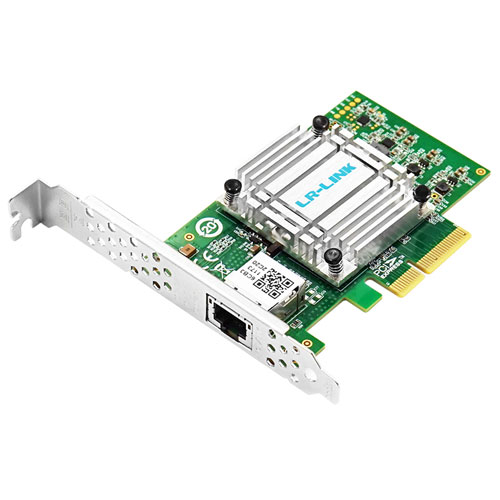

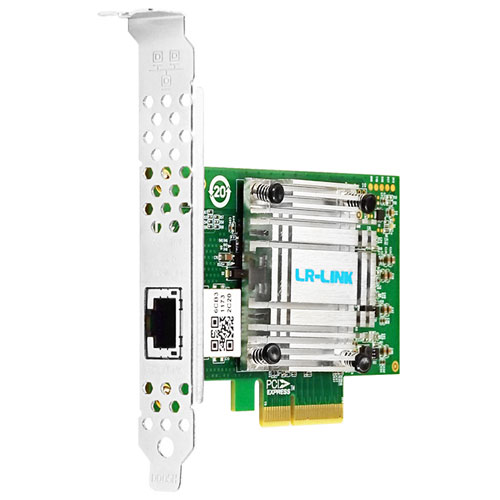

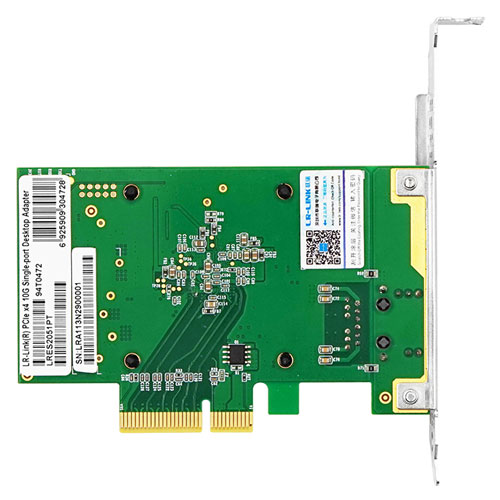

LR-LINK LRES2051PT [シングルポート 10GBASE-T LANカード Marvell AQC113チップ搭載 PCIe 3.0 x4]

¥12,980（税込）

送料無料！

メーカーに在庫がある場合は2～10日前後での出荷となります。

数量：

オプションを追加で申し込む

型　番： LRES2051PT

商品スペック

Controller	Marvell AQC113
Cable medium	Copper
Copper Cable Type	10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T/ 10BaseT
Bracket Height	Low Profile & Full Height
Power (min)	1.2177 W
Power (max)	2.805W
Bus Interface	PCIe v3.0 (8GT/s) x4; Compatible x8 x16
Data rate per port	10G /5G /2.5G /1G /100M /10M
Connector	1*10G RJ45
Power Supply	PCIe
Operating System Support	* Windows 10 /11 （21h2 or later）
	* Windows Server 2022
	* RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3
	* Deepin 15.11 /20 /20.6
	* Ubuntu 16.04.3 /18.04.5
	* ZTE New Fulcrum 3.2.2 /5.0.5
	* Asianux Server v7.0
	* NeoKylin 7.6
	* Zhongke Fangde desktop operating
	system 4.0
	* Zhongke Fangde server operating system
	* Tongxin UOS 20
	* Emind OS
	* OpenKylin 0.7.5
	* iKuai router
PXE	Yes
WoL	Yes
Jumbo Frames	Yes
SR-IOV	No
ESD_Contact discharge	±8KV
ESD_Air discharge	±15KV
Lightning surge test	±1KV common mode
Protocol Support	IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair
	IEEE 802.3bz 2.5/5GBASE-T
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	IEEE 802.3u 100BASE-TX Fast Ethernet
	IEEE 802.1Q VLANs
	IEEE 802.3x Full Duplex and flow control
	IEEE 802.3az - Energy Efficient Ethernet (EEE)
10M/100M/1G/2.5G/5G/10G Connection Status	(ACT) Orange Link + (LINK) Green Link
10M/100M/1G/2.5G/5G/10G Transfer status	(ACT) Orange Link + (LINK) Green Blink
Operating Temperature	0℃ to 70℃ (-32 °F to 158 °F)
Storage Temperature	-55 ℃ to 105 ℃ (-67 °F to 221 °F)
Storage Humidity	Maximum 90% non-condensing relative humidity at 35 ℃
Certification	FCC, CE, RoHS
