| Chipset |
Intel Thunderbolt 4 JHL8540 Controller |

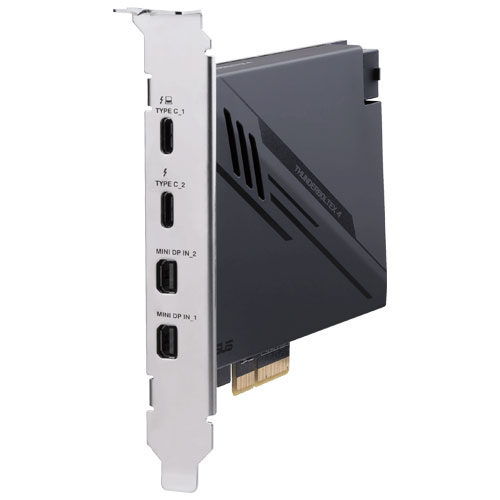

| External Connectors |
2 x USB Type-C ports (Support Thunderbolt 4 and USB 4 technology) |
|
- up to 40Gbps for Thunderbolt devices |
|
- The Type-C_1 supports up to 20V/5A, 100W quick charge feature, Type-C_2 support up to 9V/3A, 27W quick charge feature. |
|
2 x mini DisplayPort IN ports |
|
1 x USB 2.0 header |
|
1 x Thunderbolt header |
| Interface |
PCIe 3.0 x4 interface |
| VGA |
Supports DisplayPort 1.4 with max. resolution 7680 x 4320@60Hz* |
|
* Max resolution support will depend on your VGA source |

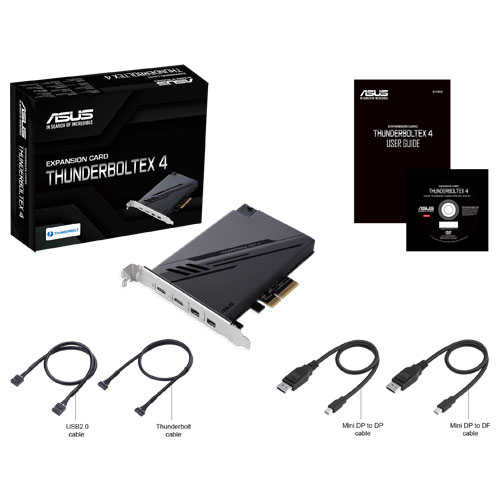

| Accessories |
2 x mini DisplayPort cables (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 4 card) |
|
1 x USB 2.0 cable |
|
1 x 14-1 pin Thunderbolt header cable |
|
1 x User manual |
|
1 x Support DVD with Thunderbolt driver |
| Compatible Models |
ASUS Intel 500 series and later models with 14-1 pin Thunderbolt header. |
|
*Refer to the following link for an up-to-date list of compatible models ＜www.asus.com/Motherboard-Accessories/ThunderboltEX-4/HelpDesk_Manual/＞ |
| Operating System |
Windows 10 - 64 bit |
| Dimensions |
4.6 inch x 7.1 inch (11.77 cm*18.05 cm) |

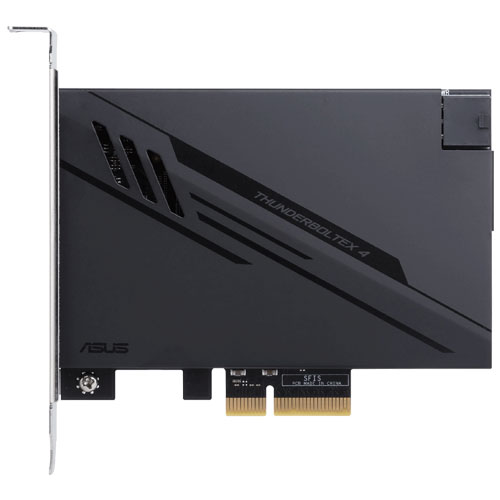

![ASUS THUNDERBOLTEX 4 [ThunderboltEX 4 拡張カード (Maple Ridge) 2 x Thunderbolt 4 (USB 4.0 Type-C)]](https://www.e-trend.co.jp/item_data/01/22/72/01227295/images/01227295_01.jpg)
