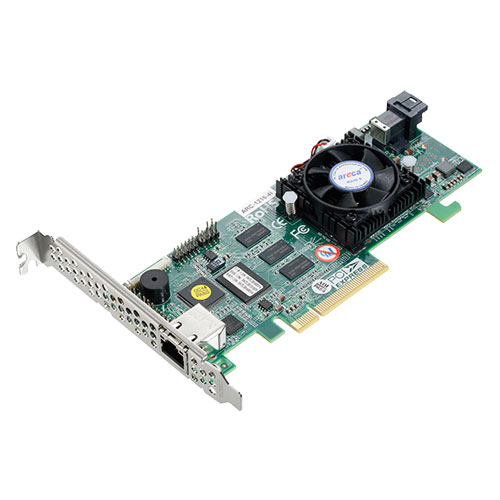

ARECA ARC-1216-4I [12Gb/s SAS/SATA RAID Adapters 内部 4ポート (SFF-8643) 1GB Cache PCIe 3.0 x8]

¥114,565（税込）

送料無料！

メーカーに在庫がある場合は2～10日前後での出荷となります。

数量：

型　番： ARC-1216-4I

商品スペック

Host Bus Interface	8-Lane PCI Express(R) 3.0
Ports	4 x internal
Drive Connectors	1 x SFF-8643
Data Transfer Rate	Up to 12Gb/s per port
Drive Support	Up to 4 x SAS/SATA HDDs/SSD
Cache Memory	1GB on-board DDR3-1600 SDRAM with ECC protection
Physical Dimensions	Low Profile　 169.5(L) x 64.4(H) mm
BBM Support	ARC-1883-CAP / ARC-6120BA-T121-12G
Power Dissipation	Typical 14.4W
Operating Temperature	0 °C to 60 °C with 200 LFM airflow
Operating Humidity	10% to 85%, non-condensing
RAID Levels	RAID level 0, 1, 10(1E), 3, 5, 6, Single Disk or JBOD
RAID-on-Chip Controller	Dual Core RAID-on-Chip 1.2GHz
RAID Features	Multiple RAID 0 and RAID 10 (1E) support (RAID 00 and RAID100)
	Support RAID 1 - Multi Mirroring and Mirrored Pass-Through Disk
	Multiple RAID selection
	Configurable stripe size up to 1MB
	Support HDD firmware update
	Online array roaming
	Online RAID level/stripe size migration
	Online capacity expansion and RAID level migration simultaneously
	Online volume set growth
	SED (self-encrypting drives) function support
	Multiple pairs SSD/HDD disk clone function
	SSD automatic monitor clone (AMC) support
	Instant availability and background initialization
	Support global and dedicated hot spare
	Automatic drive insertion/removal detection and rebuilding
	Support for native 4K and 512 byte sector SAS and SATA devices
	Support intelligent power management to save energy and extend service life
	Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
