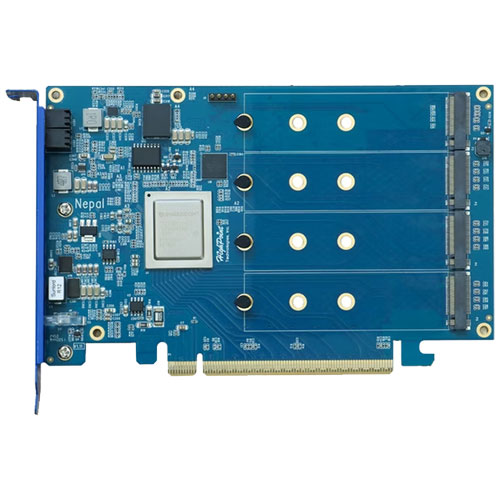

HighPoint R7604A [Rocket 7604A PCIe Gen5 x16 to 4x M.2 (2242/2260/2280) NVMe RAID Adapter]

¥210,820（税込）

送料無料！

お取寄せ※納期目安について

メーカーに在庫がある場合は2～10日前後での出荷となります。

型　番： R7604A

詳　細： メーカーページへ

商品スペック

Bus Interface PCIe 5.0 x16
Number of Channel / Port 4x NVMe Ports (Dedicated PCIe 5.0 x4 per port)
Port Type M.2
Number of devices 4
SSD Form Factor M.2 (2242, 2260, 2280)
Synthetic Hierarchy Yes
Data Transfer Rate 64GB/s
External Power Support N/A
LED Indication Intelligent, Self-Diagnostic LEDs
Power Measurement Real Time Power Measurement
FRU Support Yes Store VPD Data
SED Support Support (Only Windows and Linux) Not Supported On ARM Platform
CPU Architect Support x86 / ARM
Form Factor Full-Height, Half-Length
Width Single Width
Card Dimensions 167mm x 110mm
Card Weight 0.80 lbs.
Cooling System Heatsink with a 8010 Fan inside

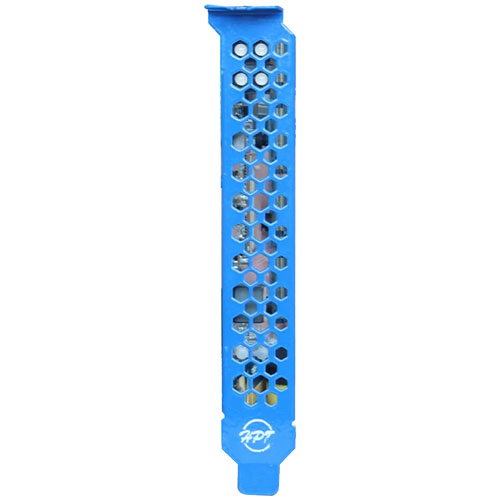

PCIe Bracket Full-Height Ventilated Bracket
Heatsink 1. One Big heatsink to cover all the board area 2. One 8010 Fan inside the Heatsink 3. the Adapter with Heatsink installed will not violate the PCIe Spec
Toolless SSD mounting system Yes
OS Only Supports 64-bit operating systems
Windows 11, 10 / Windows Server 2022, 2019, 2016 / Microsoft Hyper-V
RHEL, Debian, Ubuntu, Fedora, Proxmox, Rocky Linux (Linux kernel 3.10 and later)
Software Secure Boot Yes
RAID Support Single, RAID 0, 1, 10
TRIM RAID Support Single, RAID 0, 1, 10
Data-RAID Yes
Boot-RAID Yes
Management Suites WebGUI (Browser-Based management tool), CLI (Command Line Interface - scriptable configuration tool), API package, UEFI BIOS/HII (Not Support on ARM)
SMTP Email Alert Notification Yes
Alarm Buzzer Yes
Storage Health Inspector Yes
NVMe SMART status Yes
Automatic and configurable RAID Rebuilding Priority Yes
Auto resume incomplete rebuilding after power on or reboot system Yes
Single-RAID or Multi-RAID Arrays per Controller Yes
Cross-Sync RAID Solution Across Controllers Yes
Online Array Roaming Yes
RAID Quick Initialization for fast array setup Yes
Global Hot Spare Disk support Yes
Working Temp +5°C ～ + 55°C
Storage Temp -20°C ～ +80°C
Operating Voltage [PCIe] 12V, 3.3V
MTBF 920,585 Hours
Kit Contents Rocket 7604A RAID AIC
QIG
[Thermal pad] 70*90*0.75mm, K=8, Gray；V100；x1 [Thermal pad] 70*90*1.5mm, K=3, Blue；V100；x1 [Thermal pad] 70*90*1mm, K=8, Gray；V100; x1
4 x additional M.2 Rubber
